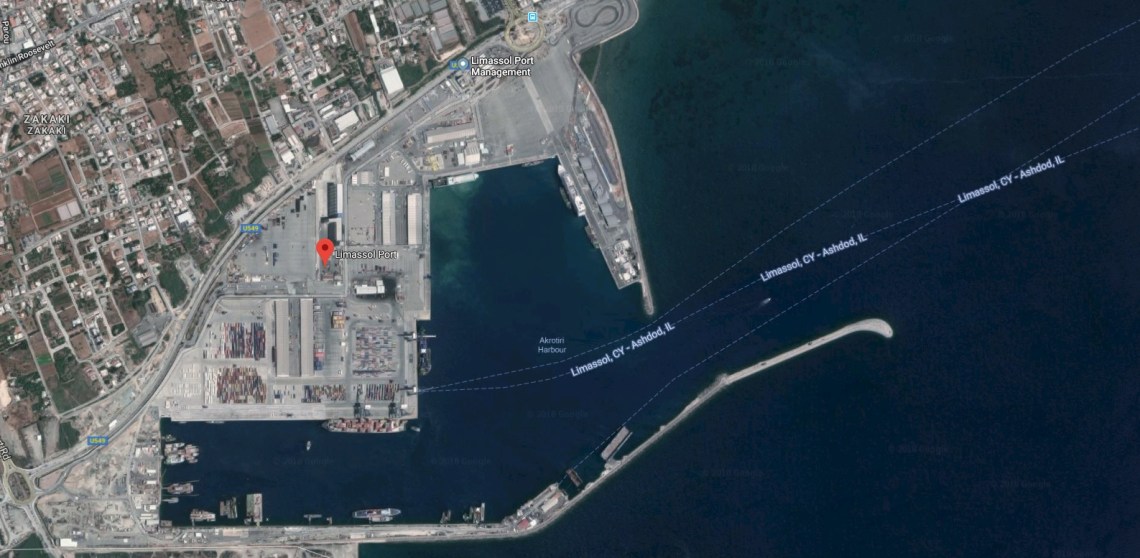

Limassol port aerial photo

Limassol port

Limassol Port,  (CYLMS), a port of multiple uses, is the main port of Cyprus. It commenced operations in 1974, immediately following the coup d’etat and the Turkish invasion. In essence, it started working as the main port of the country following the occupation of Famagusta Port, which was handling 83% of the total cargo of our country.

Limassol port
Limassol port

General Cargo Terminal

General Cargo Terminal

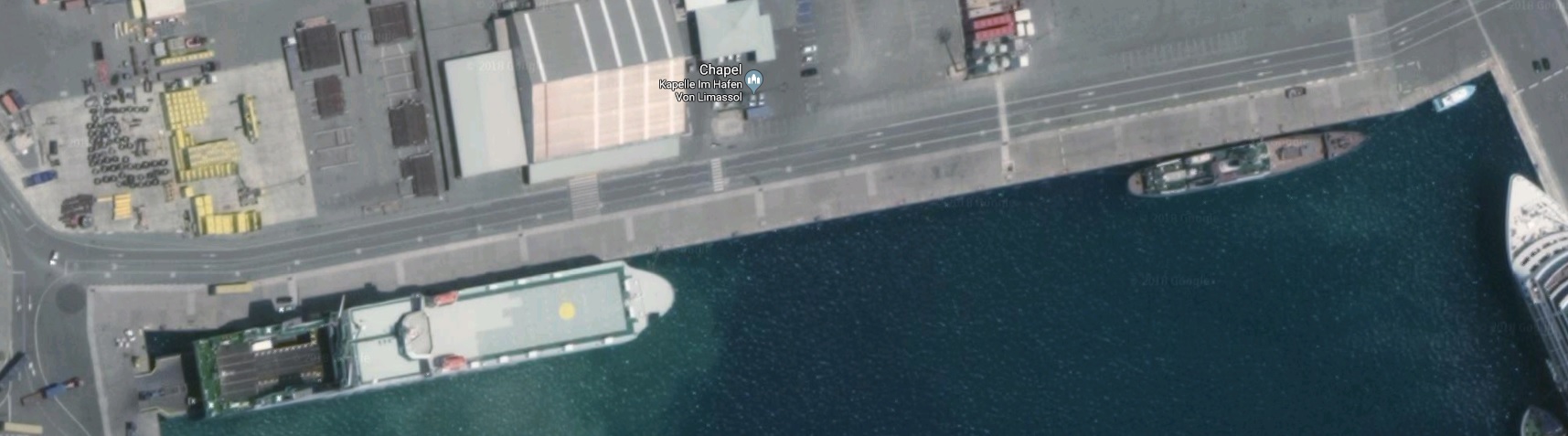

North Quay Limassol port
Northern 430m with maximum depth of water 11m

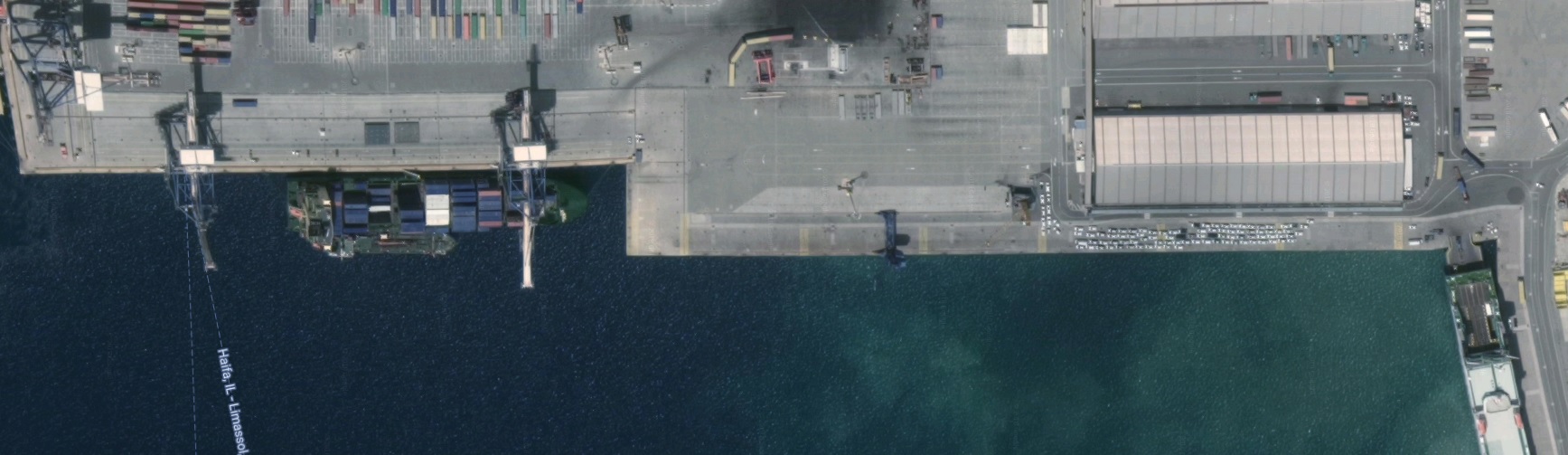

western quay limassol port
Western 450+320m with maximum depth of water 11m - 16m

eastern quay limassol port
Eastern 480m with maximum depth of water 11 m

Container Terminal

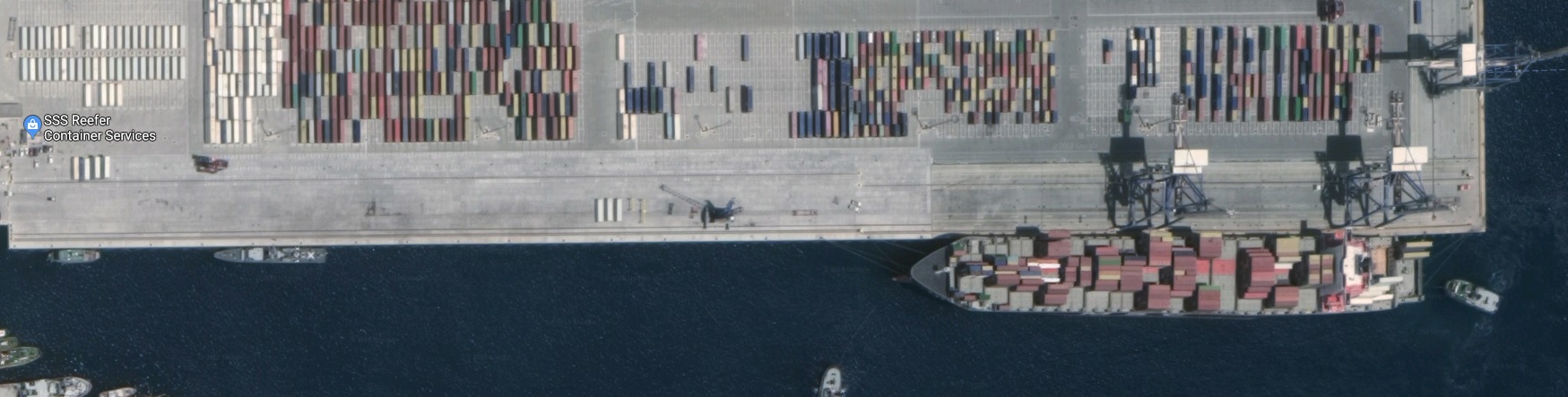

eurogate terminal
500m quay and 16m draft

General Information
PositionIs situated on the S coast of Cyprus at the head of the Akrotiri bay, about 5 ½ miles N of Cape Gata in position (34º 39’ N  033º 01’ E)
FunctionMultipurpose port and the principal port of Cyprus with modern facilities for handling passengers, containers, Ro-Ro, general cargo vessels and bulk carriers.
TopographyBehind the town, the land rises gradually in tree-covered, wedge-shaped hills.
Port limitsThe part of coast and the territorial waters of Cyprus which is enclosed between line standing from Roman Catholic Cemetery where situated 16,5 cables Northeasterly of Limassol port, fixed red lighthouse, towards open sea and the line standing 108 degrees starting from the point where beach contact the south main breakwater of Limassol new port, towards open sea for distance 7.8 nautical miles and from that point on direction of 136 degrees until latitude 34 degrees North & 30 minutes East.
Approach and entryThe port is approached by a channel, dredged to a depth of -17m over a width of 150m. The centerline of the channel is marketed with the alignment 248º of leading lights (metal framework tower with orange diamond top marls), situated at the southwest end of the port. The front line becomes visible only when nearly in line with the rear light. The seaward end of the channel is market by a green fairway buoy.
TrafficDuring 2010 Limassol port served 3.405 ships with total of 20 million net register tonnage, 3,69 million tons of cargo, 380.278 passengers
Port Authority
Port Manager
Cyprus Ports Authority
Limassol Port Manager, Limassol New Port, P.O.Box.: 53331,3302 Limassol.
Limiting Conditions
Controlling depthThe entrance channel of Limassol Port is dredged to a depth of -17 m over a width of 150 m. The basin between the port entrance and the quays has also been dredged to -17 m. Port’s turning circle is 600m.
Deepest and longer berth16.0 m, 480 m East Quay.
Mean tidal levelsMean spring range about 0.4 m, mean neap range about 0.2 m
Abnormal levels0.60m
Density of water1026 g/m3
Maximum size of vessel handledUp to 15 m draught with no limitations on the vessels length
Local weatherThe prevailing summer wind is a sea breeze that normally blows in from the W. It gets up about midday, blows between 3 and 6 and dies down at night. Away from the coast the wind tends to be SW but closer in it follows the contours of the coast so that at Larnaca it blows from SSW-S. Gales can blow from all directions, but most frequently blow from S or E. In the summer there is frequently a sea fog in the early morning which can reduce visibility to less than a mile. It is usually dispersed by midday. Port operations may be interrupted but the fog usually clears by 08.30L, 10.00L latest. Southeast desert winds bring dust to the area, but normally is not a problem.
Sea stateSlight to moderate
Arrival Information
Port operationsMultipurpose (excluding Tankers)
Vessel Traffic ServicesIt is operated from Limassol operations centre on a continuous 24-hours basis. It is manned by internationally qualified VTS officers and operated in accordance with IMO resolution A.857 (20). The centre is responsible for the planning and co-ordination of vessels traffic movements and provides information services concerning the arrival, berthing, anchoring and departure of vessels and also information on aids to navigation, navigation generally, visibility, tidal information and safety of vessels and persons for the Port of Limassol.  VHF ch 09
Port radioVHF CH 10-16
Notice of ETA24 hrs prior to arrival
Outer anchoragesAnchorage may be obtained within the designated anchorage area centred 1 mile east of Limassol lighter basin, as shown on the chart, in depth of 10 m to 70 m. The holding ground is good, and although the anchorage is open S and E, vessels with good anchors and cables do not normally drag during gales. From October to April, when NE gales occur, it is usual to anchor in a depth of about 22 m.
During the summer the prevailing W winds sometimes reach gale force in the afternoon, making boat work uncomfortable. For this reason it is advisable for small vessels to anchor to the SW.
Anchoring and fishing are prohibited within the approach channel, as shown on the chart.
Marine farmsA marine farm, marked by four light-buoys (cardinal), is positioned about 9 cables SE from the head of Main Breakwater. A second farm, closer inshore, is positioned about 2½ cables SE from the elbow of Main Breakwater.
PilotsPilotage is compulsory and available 24 hours. The pilot boards 1 mile E of the head of Main Breakwater, as shown on the chart.
TugsThree tugs are available, having the one 1300hp capacity and the other two 3500hp (35T Bollard Pull) and meet vessels outside the port area.
Local knowledge--
Regulations concerning entryAlways after port master's approval.
QuarantinePratique Granted before or after berthing
Notice of medical requirementsShould be sent at least 3 hours before arrival
General layoutThe port comprises Limassol port, on the SW side of the town, and Limassol Lighter Basin 1½ miles NE, which fronts the town.
Limassol Port is an artificial port protected from S by Main Breakwater and from E by Lee Breakwater. The port is quayed on its E, N and W sides and partially quayed in West Basin.
Limassol Lighter Basin is protected by two breakwaters. The E breakwater extends 150 m SSE, thence 180 m SW, forming, respectively, East Quay and South Quay. The W breakwater extends 107 m S, leaving an entrance 46 m wide between the breakwater heads.
Seaplane port/areaTurning circle 600m.
Measured distance-
Degaussing range-
Traffic signals-
Storm signals-
Natural conditionsUsually Fair
Principal marksLandmarks (positioned from Limassol Lighter Basin entrance (34º 40’.1N 033º 02’.5E): Grain silos (1.7 miles SW), standing near the W quay of Limassol Port. Water tower (elevation 55 m) (6 cables NNW), situated in the central part of the town. Cape Gata Lighthouse (6 miles S).
Directions for entering portFrom a position about 3 miles SE of the entrance to Limassol port the track leads NNW to the pilot station and the to the beginning of the port entrance leading line: Front light (metal framework tower, orange diamond topmark) (34º 38’.7N 033º 00’.05E). The front light only becomes visible when nearly in line with the rear light.
Rear light (similar structure) (410 m from front light).
The alignment (248º) of these lights leads through the entrance channel, passing (with positions from the head (34º 39’N 033º 02’E) of Main Breakwater):
NNW of a wreck (3 cables ENE), with a depth of 18 m over it, thence:
SSE of a light-buoy (starboard hand) (2 cables N) marking the N side of the channel, and:
NNW of the head of Main Breakwater, from which a light is exhibited, thence:
SSE of the head (4 cables W) of Lee Breakwater, from which a light (metal column, 9 m in height) is exhibited, into the port.
Entrance channelThe approach channel is dredged to 17m with a minimum width of 150m. Maximum draught allowed 14.4 m.
Direction for leaving portIn accordance with pilots instructions.
Basins and berths
BasinsTurning circle 600m
Anchorage and mooringsAnchoring and fishing are prohibited within the approach channel, as shown on the chart. ANCHORAGE AREA:

  • Lat 34º40´,07 N, Long 033º02´,83 E
  • Lat 34º40´,55 N, Long 033º03´,50 E
  • Lat 34º40´,78 N, Long 033º04´,00 E
  • Lat 34º39´,92 N, Long 033º05´,05 E
  • Lat 34º39´,61 N, Long 033º03´,25 E
Alongside berthsE.Q. 480m 11m depth, N.Q. 430m 11m depth, W.Q. 450m 11-13m depth, Container Ro-Ro berth 320m 16m depth, Container berth 300m 16m depth, Dolphins berths 1075m 11m depth.
Port services
Diplomatic representationMainly in Nicosia-Approx. 100km from Limassol
RepairsThere is a floating dock moored in Limassol port
Other facilitiesBunkering, garbage collection, oil waste, First Aid facilities, compass adjustment, fumigation.
SuppliesFuel by small tankers, fresh water at the berths or by barge at the anchorage, provisions, stores.
CommunicationsTaxi & bus service available at port gate.
Port regulationsIMO regulations applicable
Small craft facilitiesNot available
