The Larnaca Oil tanker berths and Gas tanker berths are situated at Larnaca roadsteps and oil and gas tankers berth there to discharge products for the terminals situated just opposite ashore.

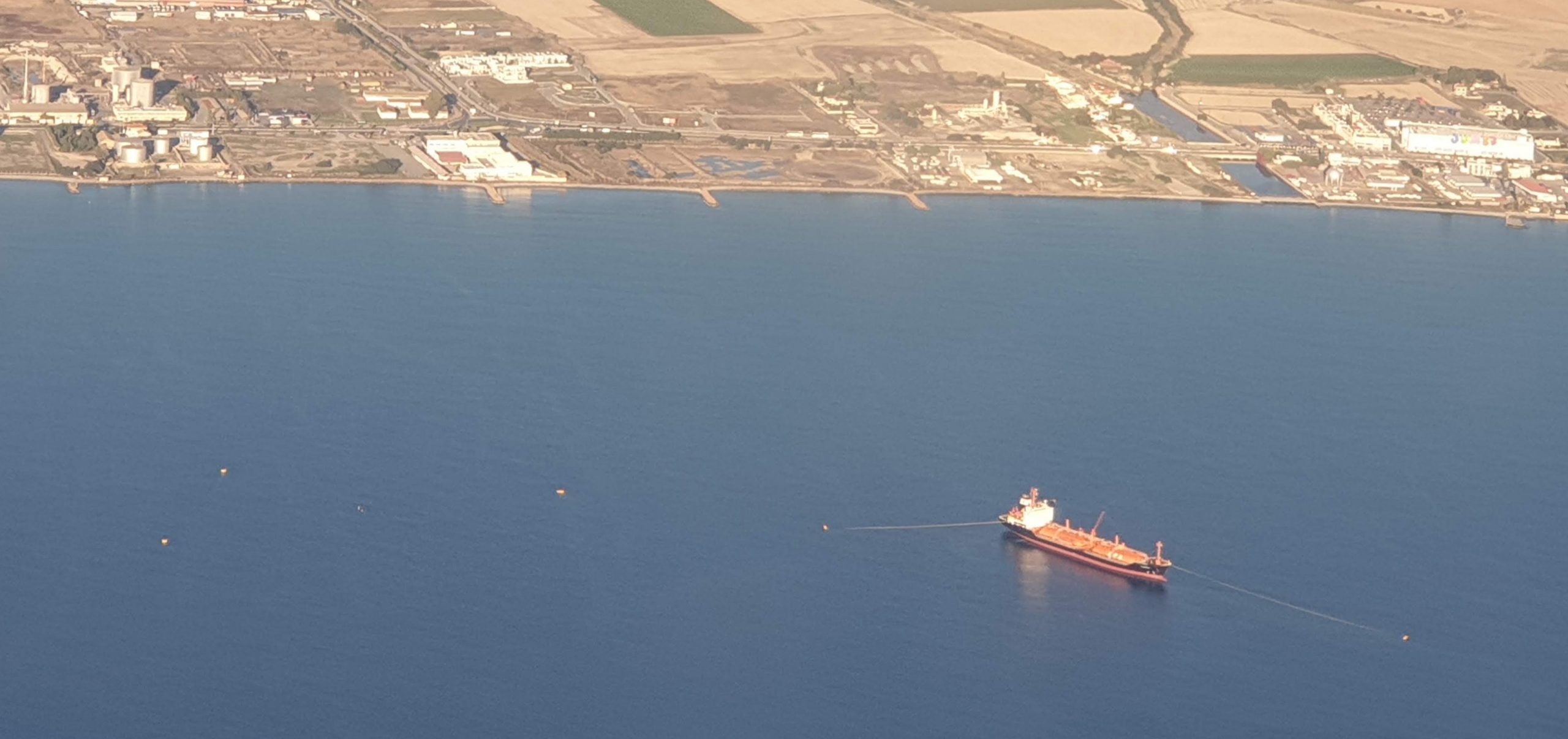

larnaca oil terminal

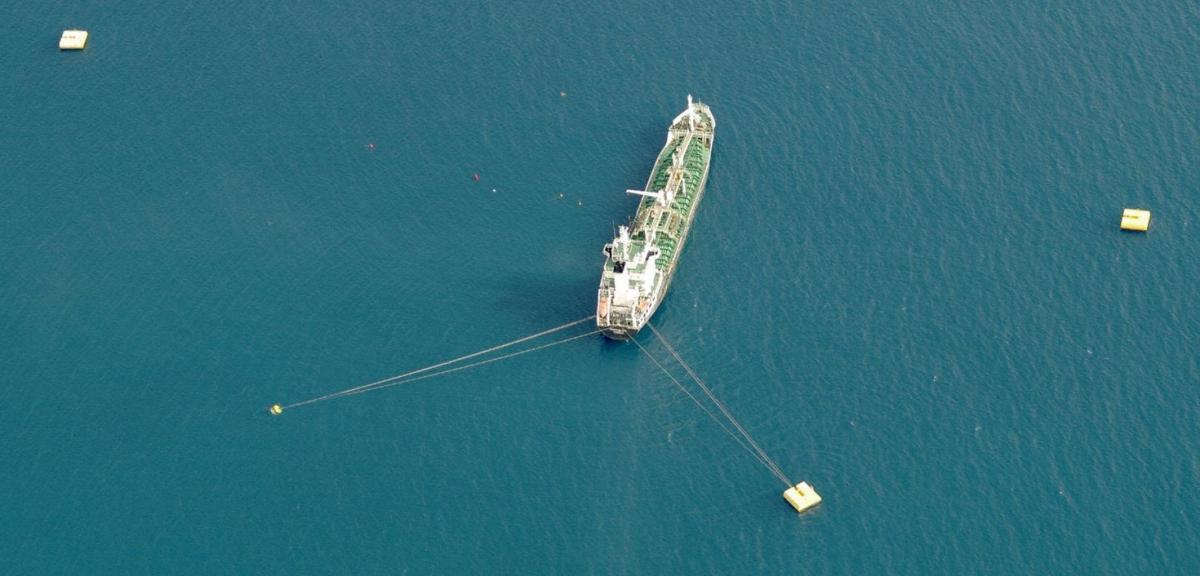

larnaca sea berths

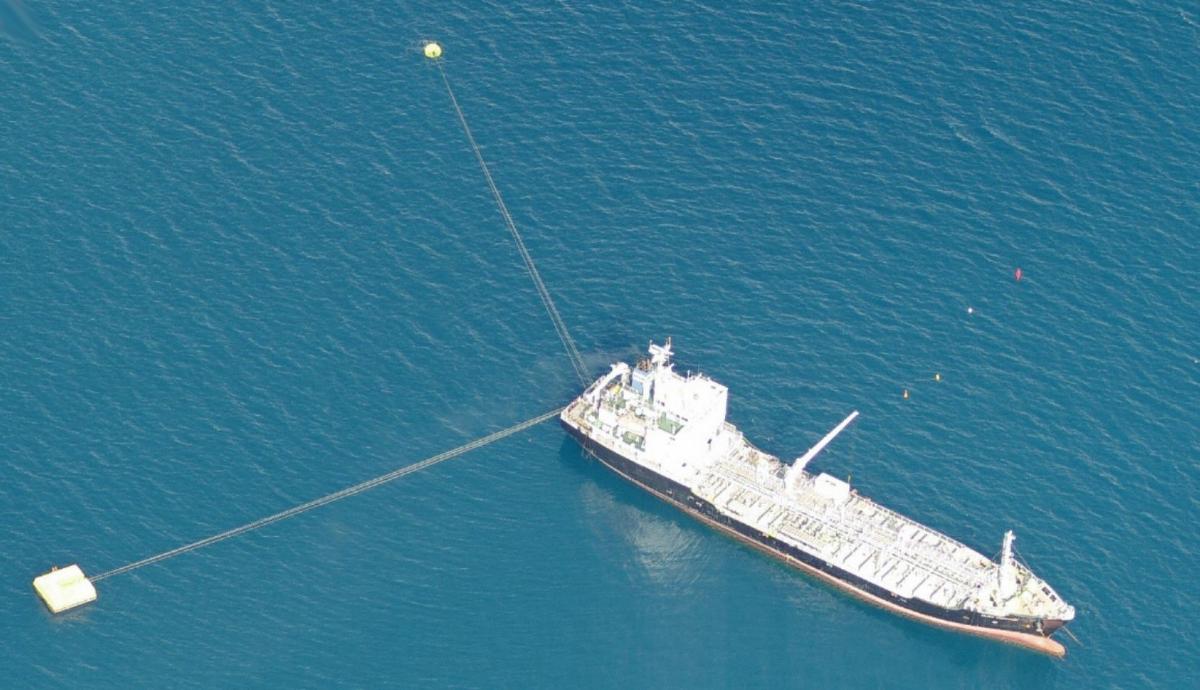

Larnaca Sea Berth for tankers

NAME OF PORT LARNACA OIL TERMINAL
General Information
Position South Coast of the Island.
Function Oil terminal
Topography Southern coast-Central Part
Port Limits That part of the coastline and the territorial waters of Cyprus , contained within a line drawn 089º to the high seas from Livadhia Church Belfry and a line drawn 089º from the Mosque (Hala Sultan Tekke) on Admiralty Chart No. 851 of the 8 th August 1941.
Approach and entry Mooring on buoys (open roadstead)
Traffic Approx. 1,157,952 tons (2010)
Port Authority Cyprus Ports Authority
Limiting conditions
Controlling depth 12.70m
Deepest and longer berth C.P.R.L. SEA BERTH, max. L.O.A. 215m, max draught 12.70m
Mean tidal levels 0.30m
Abnormal levels 0.60m
Density of water 1025
Maximum size of vessel handled 215m
Local weather Fair prevailing winds summer SW4-5
Sea state Slight to moderate
Arrival Information
Port operations Tankers
Vessel Traffic Service -
Port radio VHF CH 14-16
Notice of ETA 24 hrs prior to arrival
Outer of anchorages North of parallel 34º 56.2N
Pilots Available any time
Tugs MARION 3500 HP 35T Bollard Pull
ONISILLOS 1320 12
ZENON 620 3.5
Local knowledge -
Regulations concerning entry Always after port master's approval.
Quarantine Pratique granted before or after berthing.
Notice of medical requirements To be sent 3 hrs prior to arrival.
General layout Open roadstead
Seaplane PORT/area -
Hazards Nil
Measured distance -
Degaussing range -
Traffic signals -
Storm signals -
Natural conditions Usually fair
Principal marks -
Directions for entering PORT -
Approaches
Entrance channel -
Direction for leaving PORT -
Basins and berths
Basins -
Anchorages and moorings Position of buoys: 34º 54.75N - 33º 39 E
Oil Tanker Berths: C.P.R.L. 214m 12.7m Draught
PETROLINA 214m 11.0m -‘'-
Gas Tanker Berths:MOBIL 110m 11.0m -‘'-
SYNERGAS 110m 8.5m -‘'-
CENTRAGAS 110m 6.0m -‘'-
Alongside berths -
Port services
Diplomatic representation Mainly in Nicosia-approx. 50km from Larnaca
Repairs Minor repairs can be performed
Other facilities Bunkering , garbage collection, oil waste.
Supplies Stores, fresh water, provisions
Communications Taxi & bus service available at port gate.
PORT regulations IMO regulations applicable
Small craft facilities Not available
